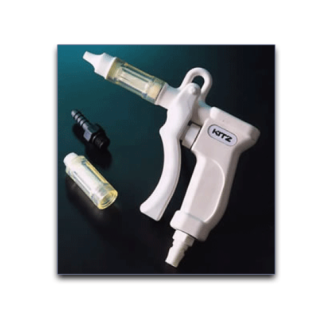

Application Features Specifications Application Compressed air, N2 Maximum Operation Pressure 0.4MPa Operation Temperature 5oC ~ 50oC Filtration Area 80 cm2 Particle Retention 0.01 µm Weight Body: 120gFilter: 11.5gCoil host: 260gSocket: 24g ~ 26g Flow Characteristics Filter Structure Product Coding Air Gun Unit CAGN-14 : Air gun unit for clean room (2 filters / pk ) AGN-14 […]

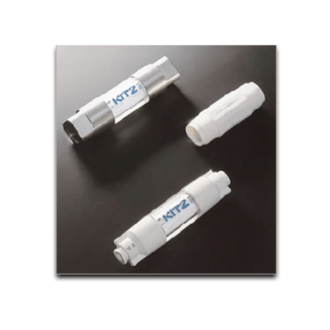

Application Features Specifications Pipe connection Caliber PT 3/8, Ø4, 6, 8OD(IN/OUT) Maximum Operation Pressure 0.8MPa Usable Fluid Air and Nitrogen Operation Temperature 5 oC~50 oC 41F~122F Particle Retention 0.01µm Flow Rate 70L/min(ANR) Weight PT 3/8: 8g. Ø4, 6, 8OD: 15g Flow Characteristics Filter Structure Product Coding 3/8 3/8 PTM T4 Ø 4mm One-touch tube connection T6 Ø […]

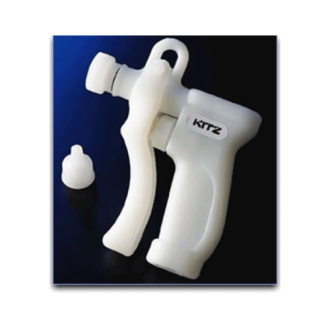

Application Features Specifications Product Code WGN-1 WGN-2 WGN-3 HOSE-W-1 Product Name Body only Body with blade host With anti-bacterial growth function Coil host Operation Temperature 5oC ~ 40oC 41oF ~ 104oF 5oC ~ 30oC 41oF ~ 86oF Maximum Operation Pressure 0.3MPa 3bar 43.5psi 0.2Mpa 2bar 29.0psi Fluid Water (Do not apply for high temperature use. […]
