Photo Sensor Flange Configuration Product Code Characteristics Outside Diameter Note MPF Flange for Photo Sensor φ32~φ50   Damper Roll Configuration Product Code Characteristics Outside Diameter Note MDR Damper for Stepping Motor φ41~φ57 Selection Method Damping Effect Customized

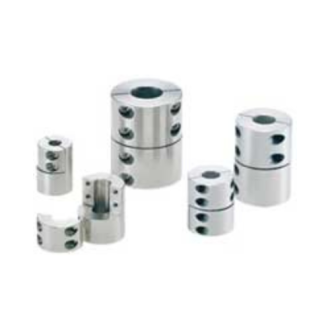

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Mass*(g) MLR-16V 6 0.3 0.6 39000 3.5×10-7 10 MLR-20V 8 0.5 1 31000 9.5×10-7 18 MLR-25V 12 1 2 25000 3.4×10-6 38 MLR-32V 15 2 4 19000 1.0×10-5 70 MLRS-16V 6 0.3 0.6 39000 9.1×10-7 25 MLRS-20V 8 0.5 1 31000 2.6×10-6 […]

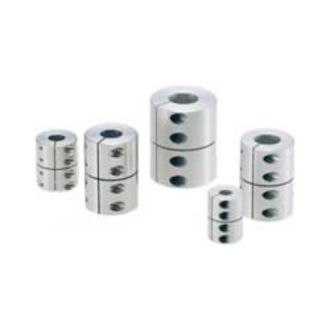

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Mass*(g) MLR-16C 6 0.3 0.6 39000 3.4×10-7 10 MLR-20C 8 0.5 1 31000 9.2×10-7 18 MLR-25C 12 1 2 25000 3.4×10-6 38 MLR-32C 15 2 4 19000 1.0×10-5 70 MLRS-16C 6 0.3 0.6 39000 8.9×10-7 25 MLRS-20C 8 0.5 1 31000 2.5×10-6 […]

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MWBS-13 6 0.07 1.5 10000 2.5×10-7 30 0.15 3.5 0.5 9.8 MWBS-18 8 0.15 0.3 10000 1.2×10-6 40 0.15 5 0.5 25 MWBS-22 1- 0.35 0.7 10000 3.4×10-6 […]

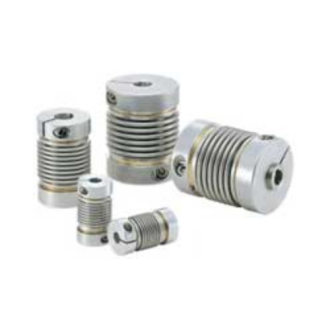

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MKM-56AC 30 20 40 10000 1.3×10-4 18000 0.2 2 0.8 250 MKM-56AC-H 30 35 70 10000 1.4×10-4 22000 0.2 2 0.8 270 MKM-63AC 34 60 120 8000 2.5×10-4 […]

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MKM-17C-H 6 0.9 1.8 20000 1.2×10-7 400 0.1 2 0.3 12 MKM-25C 10 2 4 12000 6.5×10-7 900 0.2 2 0.5 30 MKM-25C-H 10 4 8 12000 1.3×10-6 […]

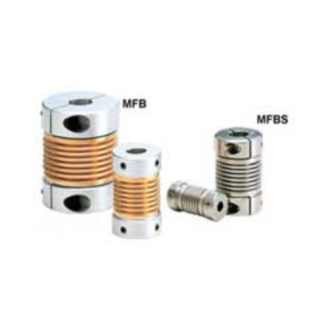

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MFB-12 6.35 0.3 0.6 52000 9.0×10-8 82 0.1 1.5 -1.2~+0.4 4.1 MFB-16 8 0.5 1 39000 3.5×10-7 110 0.1 1.5 -1.2~+0.4 9 MFB-20 10 0.8 1.6 31000 9.9×10-7 […]

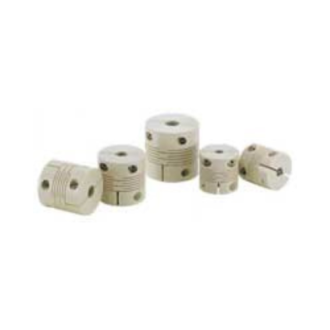

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MSXP-25C 10 0.7 1.4 25000 3.0×10-7 110 0.05 0.5 0.1 3.8 MSXP-30C 12 1 2 21000 7.8×10-7 180 0.05 0.5 0.1 6.8 MSXP-36C 16 1.5 3 17000 1.8×10-6 […]

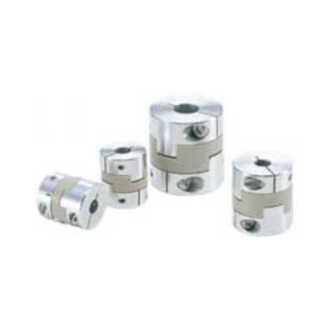

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MOP-20C 8 0.7 1.4 31000 7.4×10-7 93 1.3 2 13 MOP-25C 10 1.2 2.4 25000 2.2×10-6 140 1.5 2 24 MOP-32C 14 2.8 5.6 19000 7.3×10-6 350 2.0 2 48

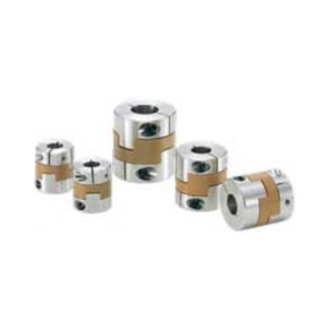

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MOHS-19C 8 0.4 0.8 900 1.4×10-6 160 1.3 2 28 MOHS-26C 10 1.2 2.4 900 5.5×10-6 220 1.5 2 61 MOHS-32C 14 2.2 4.4 900 1.6×10-5 600 1.0 2 110
