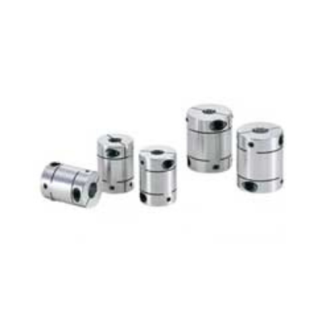

Specification Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Mass*(g) XRP-16C 6 0.6 1.2 39000 3.1×10-7 9 XRP-19C 8 1.4 2.8 33000 8.0×10-7 15 XRP-24C 10 2.3 4.6 26000 2.7×106 32 XRP-34C 15 2.8 5.6 18000 1.4×105 87 XRP-39C 18 4.7 9.4 16000 3.9×10-5 140

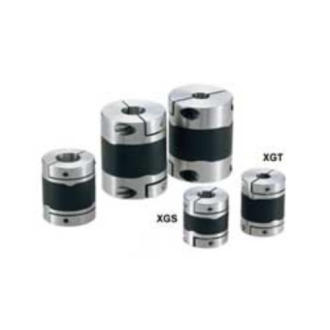

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) XGS-15C 6 0.5 1 42000 2.0×10-7 25 0.15 1.5 0.2 7 XGS-19C 8 0.8 1.6 33000 6.2×10-7 63 0.15 1.5 0.2 12 XGS-25C 12 2.3 4.6 25000 2.3×10-6 […]

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) XGT-15C 6 1.1 2.2 42000 2.7×10-7 43 0.15 1.5 0.2 8 XGT-19C 8 2.1 4.2 33000 8.4×10-7 88 0.15 1.5 0.2 14 XGT-25C 12 4 8 25000 3.0×10-6 […]

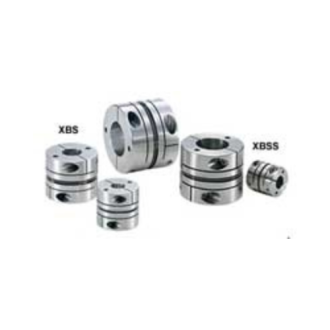

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) XBS-15C2 6 0.6 1.2 42000 9.8×10-8 300 0.5 0.1 5 XBS-19C2 8 1 2 33000 2.9×10-7 600 1 0.1 9 XBS-25C2 12 2 4 25000 1.1×10-6 1300 1 0.2 17 XBS-27C2 […]

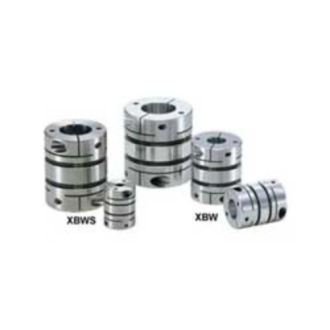

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) XBW-15C2 6 0.6 1.2 42000 2.2×10-7 200 0.05 1 0.2 7.5 XBW-19C2 8 1 2 33000 6.7×10-7 450 0.15 2 0.2 14 XBW-25C2 12 2 4 25000 2.3×10-6 […]

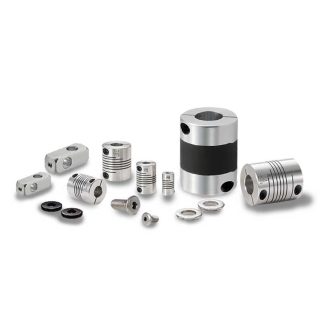

Flexible Shaft Coupling มีรูปแบบให้เลือกหลากหลาย ครอบคลุมกับการทำงานทุกรูปแบบ พร้อมทั้งสามารถสั่งผลิตเฉพาะได้ เพื่อการทำงานแบบพิเศษ
