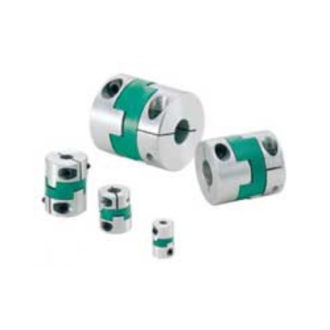

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MOS-8 3 0.08 0.16 78000 1.2×10-8 2 0.5 2 2 MOS-12C 5 0.2 0.4 52000 7.1×10-8 9 0.6 2 3 MOS-16C 6 0.4 0.8 39000 3.0×10-7 30 1 2 8 MOS-20C […]

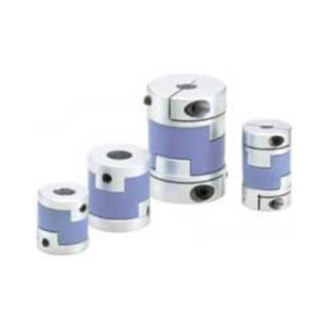

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MOL-16 6.35 0.7 1.4 39000 3.2×10-7 31 1 3 7 MOL-20 8 1.2 2.4 31000 1.0×10-6 60 1.5 3 14 MOL-25 10 2 4 25000 3.0×10-6 140 2 3 27 MOL-32 […]

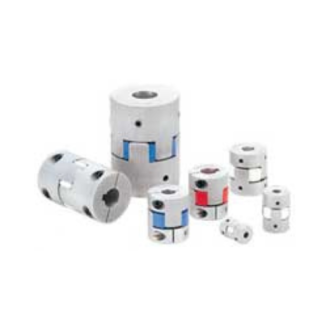

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MJT-14-BL 6.35 0.7 1.4 45000 2.1×10-7 8 0.15 1 0~+0.6 7.3 MJT-20-BL 9.525 1.8 3.6 31000 1.0×10-6 16 0.2 1 0~+0.8 18 MJT-30-BL 14 4 8 21000 5.9×10-6 […]

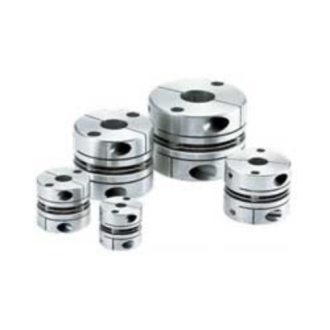

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MDS-19C 8 0.7 1.5 33000 6.3×10-7 280 0.7 0.2 9 MDS-25C 12 1 2 25000 2.1×10-6 630 0.7 0.2 19 MDS-32C 15 2.5 5 19000 7.2×10-6 1600 0.7 0.2 41 MDS-40C […]

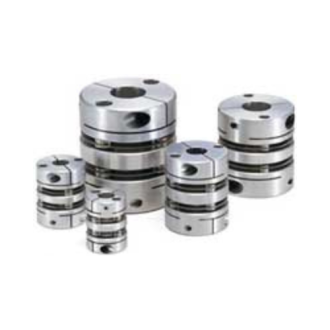

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MDW-19C 8 0.7 1.5 33000 8.7×10-7 200 0.12 1.5 0.5 18 MDW-25C 12 1 2 25000 2.7×10-6 450 0.12 1.5 0.5 60 MDW-32C 15 2.5 5 19000 9.6×10-6 […]

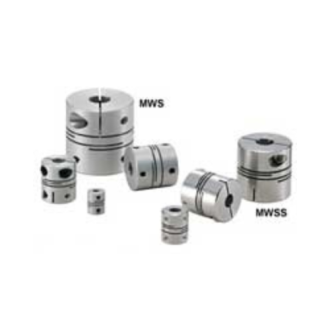

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MWS-8 4 0.1 0.2 78000 1.0×10-8 24 1 0.1 1 MWS-12 6 0.4 0.8 52000 7.0×10-8 80 1 0.1 3.1 MWS-16 8 0.5 1 39000 2.8×10-7 180 0.1 0.2 7.4 MWS-20 […]

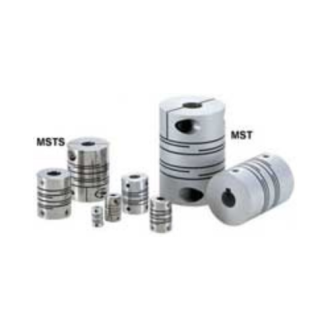

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MST-12C 5 0.4 0.8 52000 7.8×10-8 45 0.1 2 0.3 3.6 MST-16C 6 0.5 1 39000 3.4×10-7 80 0.1 2 0.4 9.2 MST-20C 8 1 2 31000 9.1×10-7 […]

Specifications Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MST-8 4 0.1 0.2 78000 1.2×10-6 25 0.1 2 0.2 1.4 MST-12 6 0.4 0.8 52000 8.3×10-8 45 0.1 2 0.3 1.4 MST-16 8 0.5 1 39000 3.3×10-7 […]

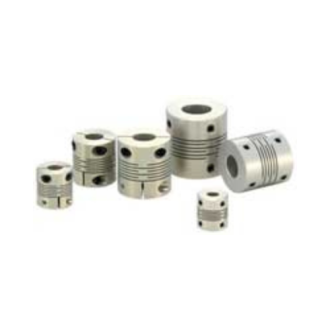

Specification Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MSX-16C 6 0.5 1 39000 2.5×10-7 200 0.05 0.5 0.1 7 MSX-19C 8 1 2 33000 5.8×10-7 270 0.05 0.5 0.1 12 MSX-24C 10 1.5 3 26000 1.8×10-6 […]

Specification Catalog Number Max.Bore(mm) Rated Torque(N•m) Max.Torque(N•m) Max. Rotational Frequency(min-1) Moment of Inertia*(kg•m2) Static Torsional Stiffness(N•m/rad) Errors of Eccentricity(mm) Errors of Angularity(°) Errors of Shaft End-Play(mm) Mass*(g) MSX-16 8 0.5 1 52000 2.8×10-7 200 0.05 0.5 0.1 7 MSX-19 10 1 2 33000 6.2×10-7 270 0.05 0.5 0.1 10 MSX-24 12 1.5 3 26000 2.0×10-6 […]
